Features:
The D-Link 16-Port Gigabit Switch (DGS-1016D) delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Users in the office, workgroup, or creative production environment can now transfer large bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network without hesitation. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19-inch rack while conserving valuable rack space. Technical Specs: MAC Address Table Size 8K Switch Fabric 32Gbps Forwarding Capacity Transmission Method Store-and-Forward Diagnostic LEDs Per Unit: Power Per Port: Activity/Link, Speed Packet Buffer Memory On ship: 512KBytes Buffer Memory per Device Power Consumption Power On (Stand by): 3.8 Watts Max: 11.7 Watts QoS 802.1p (4 Queues) Acoustics 0 db MTBF 828,109 Hours Interface Options RJ-45: 10BASE-T, 100BASE-TX 1000BASE-T Network Protocol and Standards IEEE: 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p Priority Queuing Electrical Emissions Emissions FCC Class A CE Class A ICES-003 Class A VCCI Class A C-Tick Class A Power Supply 100-240VAC, 50/60 Hz Internal Universal Power.
Technical Specifications | |
Swithing Fabric | 3.2 Gbps switching fabric |
Certifications | CE ; FCC ; ICES-003 ; BSMI ; RCM ; CCC ; VCCI ; cUL ; CB ; VD |
Data Rates | Fast Ethernet - 100 Mbps Half-Duplex , 200 Mbps Full-Duplex ; Ethernet - 10 Mbps Half-Duplex , 20 Mbps Full-Duplex |
Green features | IEEE802.3az EEE (Energy Efficient Ethernet) ; RoHS compliant |
Heat Dissipation | Maximum Heat Dissipation: 9.5536 BTU/h |
Humidity | Operating - 10% to 90% non-condensing ; Storage - 5% to 90% non-condensing |
LED Indicator | Per port - Link/Activity ; Per device - Power |
MAC Address Learning | Automatic update |
MAC Address Table | 8K entries per device |
Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
MTBF | 492,096 hours |

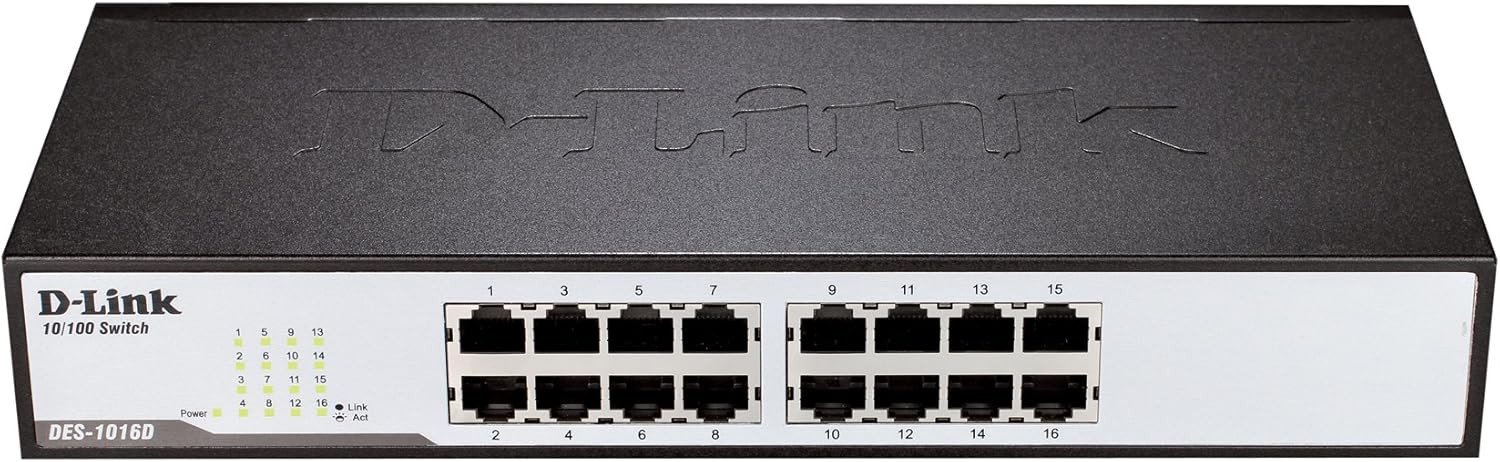

Number of Ports | 16 10/100Mbps Fast Ethernet ports |
Packet Filtering /Forwarding Rates | Ethernet: 14,880 pps per port ; Fast Ethernet: 148,800 pps per port |
Port Packet Filtering/ Forwarding Rate | 148,800 pps for 100 M ; 14,880 pps for 10 M |
Power Consumption | Standard Power Consumption: 1.17 Watts ; Maximum Power Consumption: 2.8 Watts |
Protocols | CSMA/CD |
Standards and Protocols | IEEE 802.3 10BASE-T Ethernet(twisted pair copper) ; IEEE 802.3u 100BASE-TX Fast Ethernet(twisted-pair copper) ; ANSI/IEEE 802.3 NWay auto-negotiation ; IEEE 802.3x flow control ; IEEE 802.3az EEE function |
Temperature | Operating - 0 to 40 °C (32 to 104 °F) ; Storage - -10 to 70 °C (14 to 158 °F) |
Topology | Star |
Transmission Method | Store-and-forward |
Versatile Support | Plug-and-play installation ; Full/half-duplex for Ethernet/Fast Ethernet speeds ; IEEE 802.3x Flow Control |
Network | 10BASE-T - UTP CAT 3/4/5/5e (100 m max.) , EIA/TIA-586 100-ohm STP (100 m max.) ; 100BASE-TX - UTP CAT 5/5e (100 m max.) , EIA/TIA-568 100-ohm STP (100 m max.) |
LAN | IEEE 802.3 10BASE-T ; IEEE 802.3u 100BASE-TX compliance ; IEEE 802.3x Flow Control support |
