Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency—Enables more responsive gaming and video chatting.
Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
WIRELESS |
|---|
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
|---|
| WiFi Speeds | AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax) |
|---|
| WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
|---|
| WiFi Capacity | High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth |
|---|
| Working Modes | Router Mode
Access Point Mode |
|---|
SECURITY |
|---|
| Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
|---|
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
|---|
| VPN Server | OpenVPN
PPTP VPN |
|---|
| WiFi Encryption | WPA
WPA2
WPA3
WPA/WPA2-Enterprise |
|---|
HARDWARE |
|---|
| Processor | Dual-Core CPU |
|---|

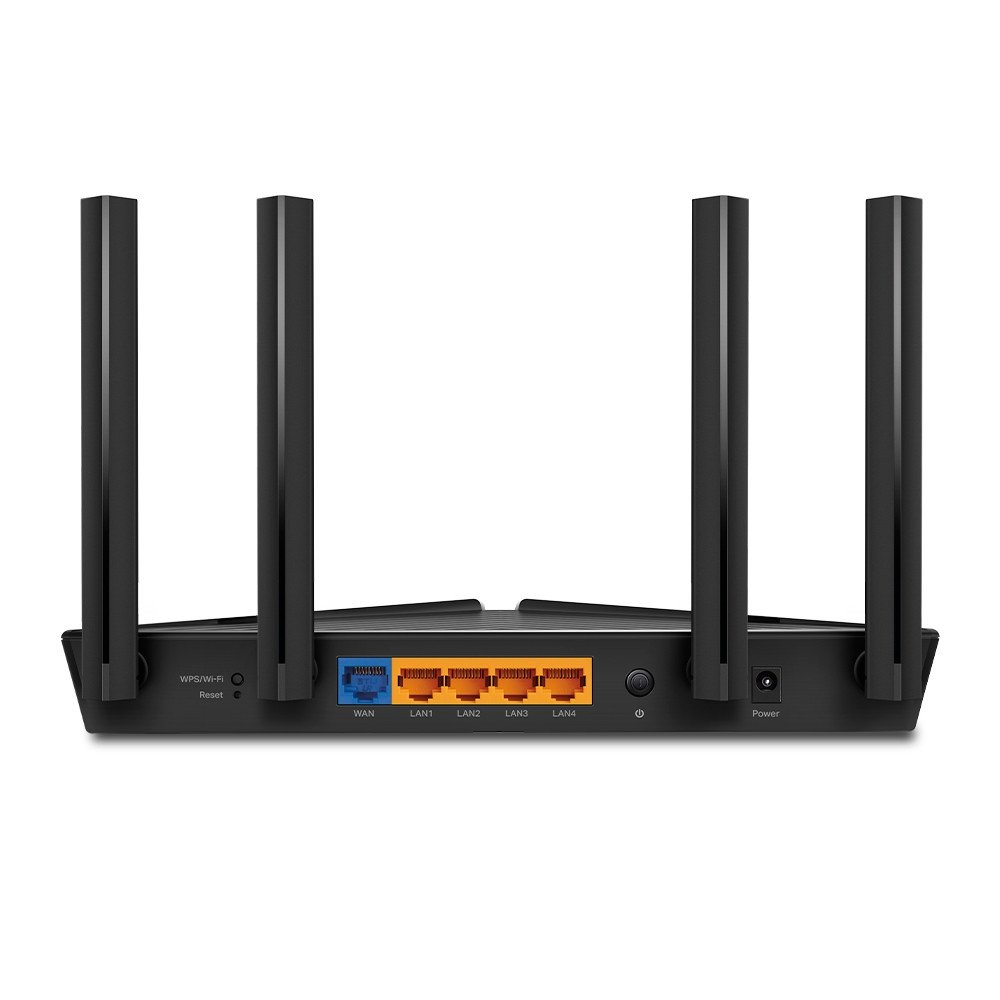

| Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports
|
|---|
| Buttons | Wi-Fi/WPS Button
Power On/Off Button
LED On/Off Button
Reset Button |
|---|
| Power | 12 V ⎓ 2 A |
|---|
SOFTWARE |
|---|
| Protocols | IPv4
IPv6 |
|---|
| Service Kits | HomeShield
Learn More> |
|---|
| OneMesh™ | OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products> |
|---|
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Learn More> |
|---|
| Parental Controls | HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
|---|
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
|---|
| Quality of Service | QoS by Device |
|---|
| Cloud Service | Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
|---|
| NAT Forwarding | Port Forwarding
Port Triggering
DMZ
UPnP |
|---|
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
|---|
| DHCP | Address Reservation
DHCP Client List
Server |
|---|
| DDNS | TP-Link
NO-IP
DynDNS |
|---|
| Management | Tether App
Webpage
Check Web Emulator> |
|---|
OTHER |
|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
|---|
| Certifications | FCC, CE, RoHS |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
TEST DATA |
|---|
| WiFi Transmission Power | CE:
<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)
FCC:
<30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) |
|---|
| WiFi Reception Sensitivity | 2.4GHz:
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dB
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-63dBm
5GHz:
11ac VHT20_MCS0:-97dBm
11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm
11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-97dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-94dBm
11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm
11ax HE80_MCS11:-61dBm
11ax HE160_MCS0:-87dBm
11ax HE160_MCS11:-58dBm |
|---|
PHYSICAL |
|---|
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.6 in
(260.2 × 135 × 41.6 mm) |
|---|
| Package Contents | Wireless Router Archer AX53
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
|---|
