Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, and brand-new design.
Blazing-Fast 9214 Mbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
5× 2.5G Ports: 1× 2.5 Gbps WAN port and 4× 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
Maximized Coverage: Proprietary WiFi optimization and optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
Easy Setup and Use: Network management has never been easier with the Tether app.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers***
WIRELESS |
---|
WiFi Speeds | BE9300 • 6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 574 Mbps (802.11ax)
|
---|
WiFi Range | 4 Bedroom Houses 6× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM Improves transmission power to strengthen signal coverage |
---|
WiFi Capacity | High Tri-Band Allocate devices to different bands for optimal performance
2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple clients
Airtime Fairness Improves network efficiency by limiting excessive occupation
DFS Access an extra band to reduce congestion
6 Streams Connect your devices to more bandwidth |
---|
Working Modes | • Router Mode • Access Point Mode |
---|
Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network
|
---|
SECURITY |
---|
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway
• HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
---|
Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
---|
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
---|
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
---|
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
---|
HARDWARE |
---|
Processor | High-Performance CPU |
---|

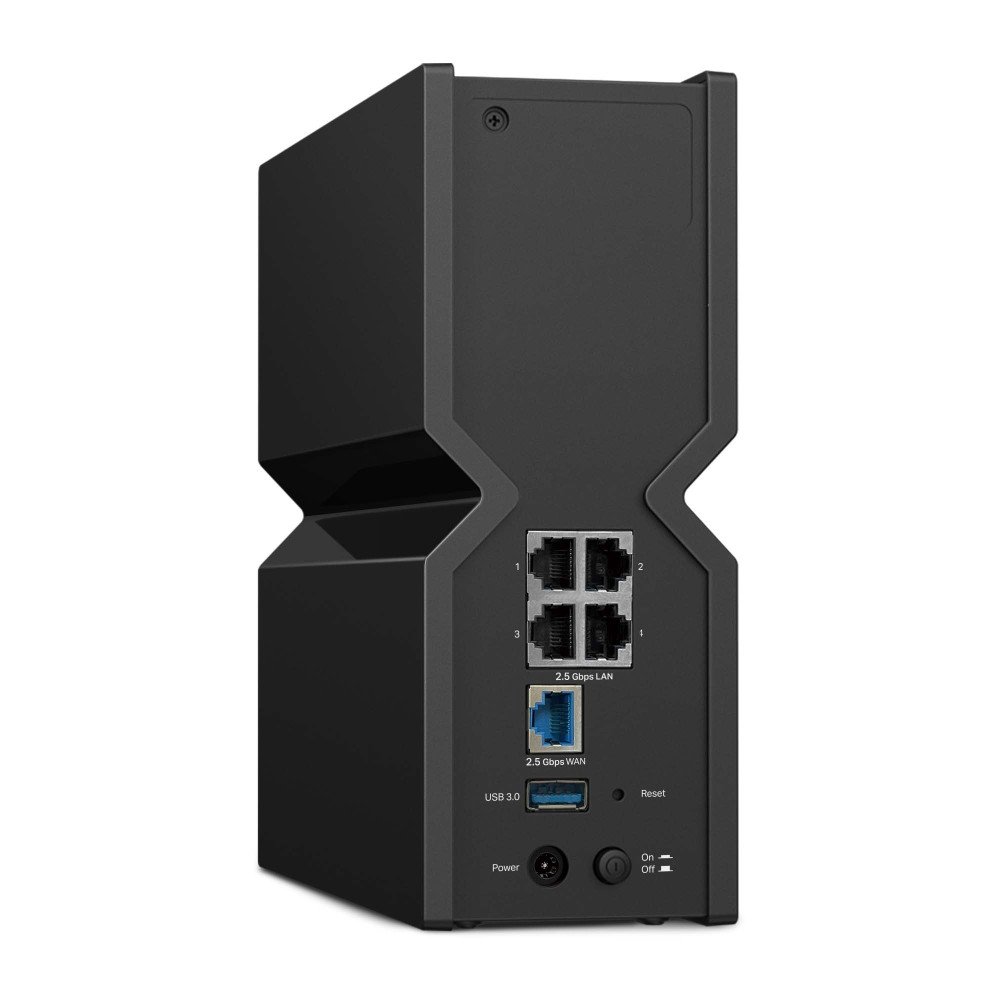

Ethernet Ports | • 1× 2.5 Gbps WAN • 4× 2.5 Gbps LAN |
---|
USB Support | 1× USB 3.0
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: FTP Server Media Server Samba Server |
---|
Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
---|
Power | 12 V ⎓ 3.3 A |
---|
SOFTWARE |
---|
Protocols | • IPv4 • IPv6 |
---|
Service Kit | HomeShield Learn More> |
---|
EasyMesh | Compatible with EasyMesh |
---|
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
---|
WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
---|
Quality of Service | QoS by Device |
---|
Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
---|
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
---|
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
---|
DHCP | • Address Reservation • DHCP Client List • Server |
---|
DDNS | • TP-Link • NO-IP • DynDNS |
---|
Management | • Tether App • Webpage |
---|
OTHER |
---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
---|
Certifications | CE, FCC, RoHS |
---|
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
---|
PHYSICAL |
---|
Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |
---|

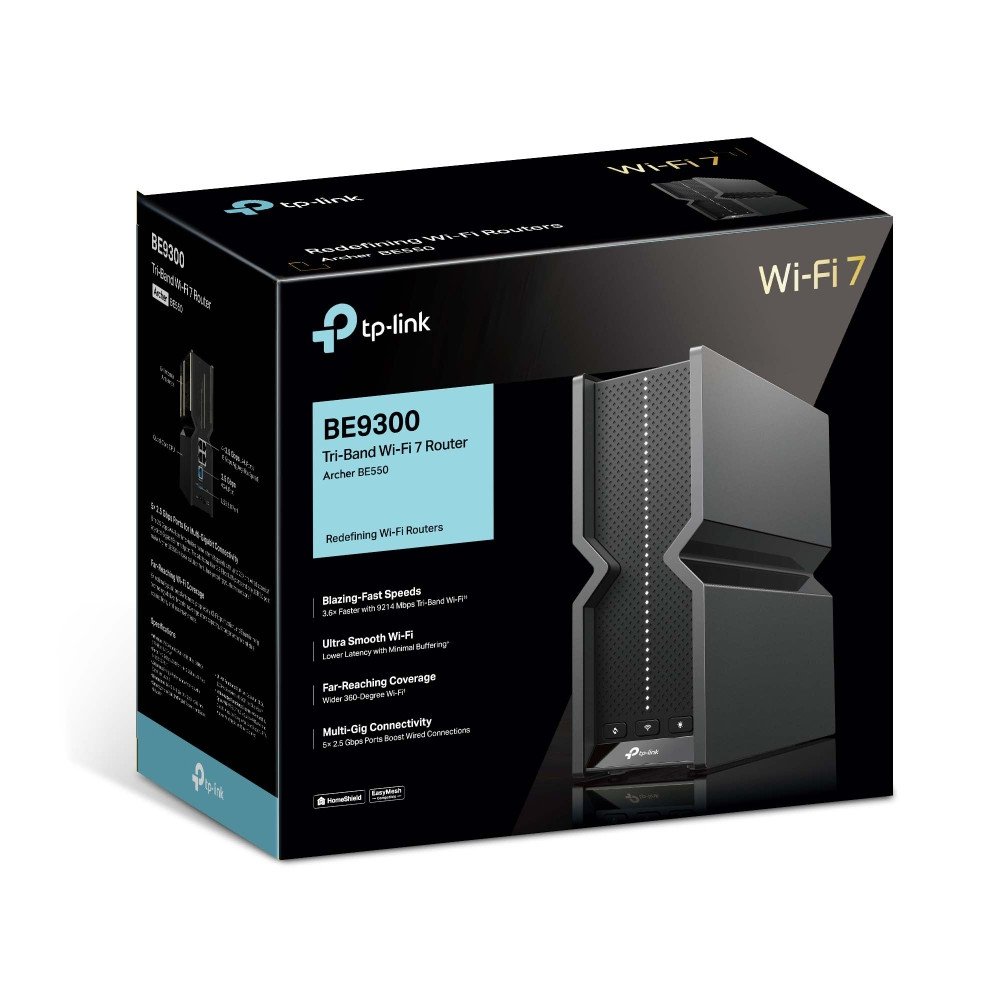

Package Contents | • Wi-Fi 7 Router Archer BE550 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
---|
