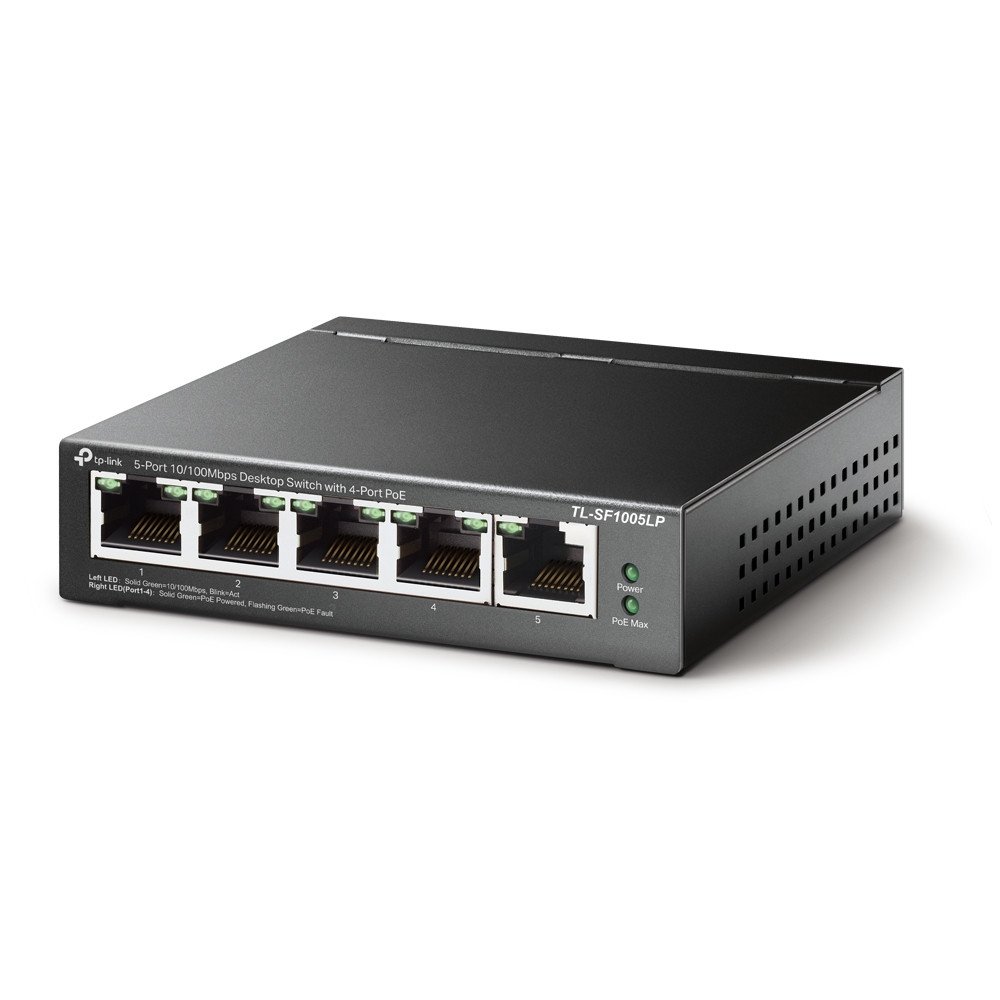

TP-Link SF1005LP

Top Selling Products

0 out of 5.0

(0 reviews)

There have been no reviews for this product yet.

Description

5× 10/100 Mbps RJ45 ports

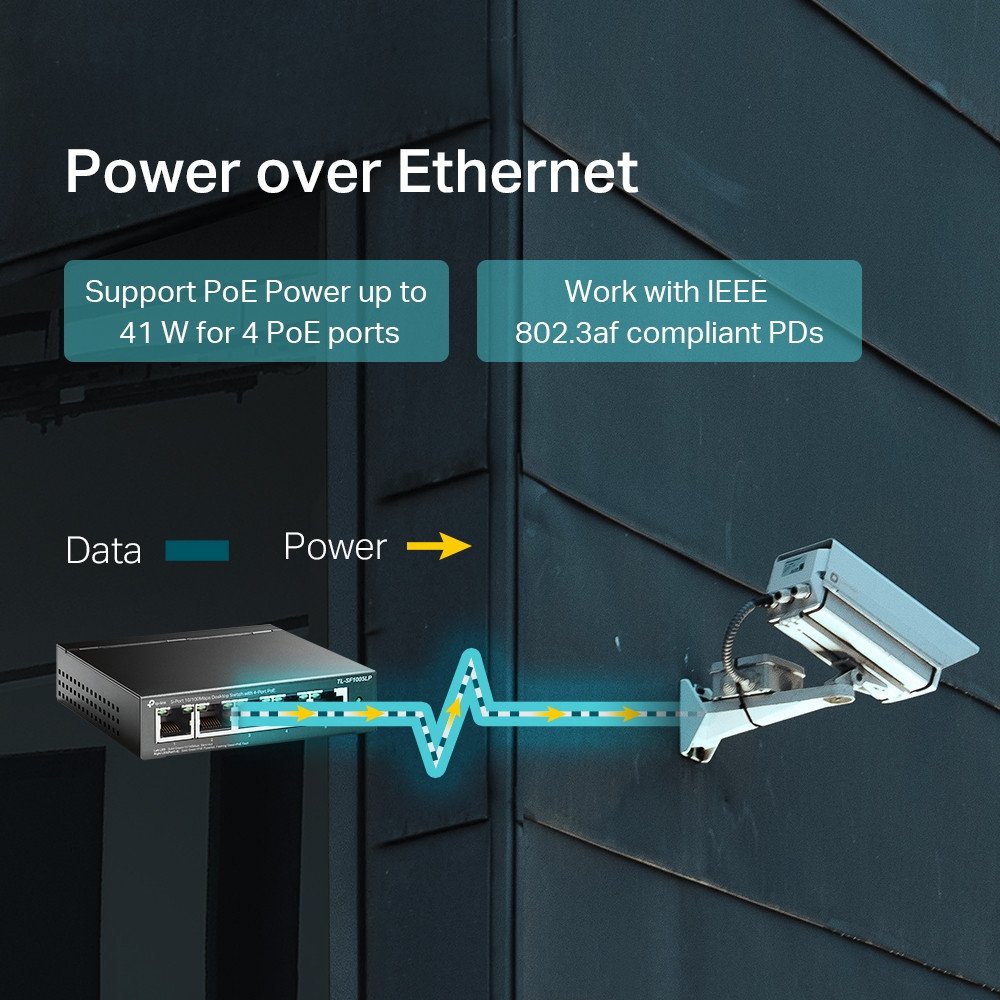

4× PoE ports transfer data and power on individual cables

Works with IEEE 802.3af compliant PDs

Up to 250 m data and power transmitting range under Extend Mode^**

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Supports PoE Power up to 41 W for all PoE ports^*

Plug and play with no configuration required

HARDWARE FEATURES
Interface	• 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1005LP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Download
