Description

9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port

With 8 PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at compliant PDs and expands office network

802.1p/DSCP QoS enable smooth latency-sensitive traffic

High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports

Easy to use, with no configuration and installation needed

HARDWARE FEATURES

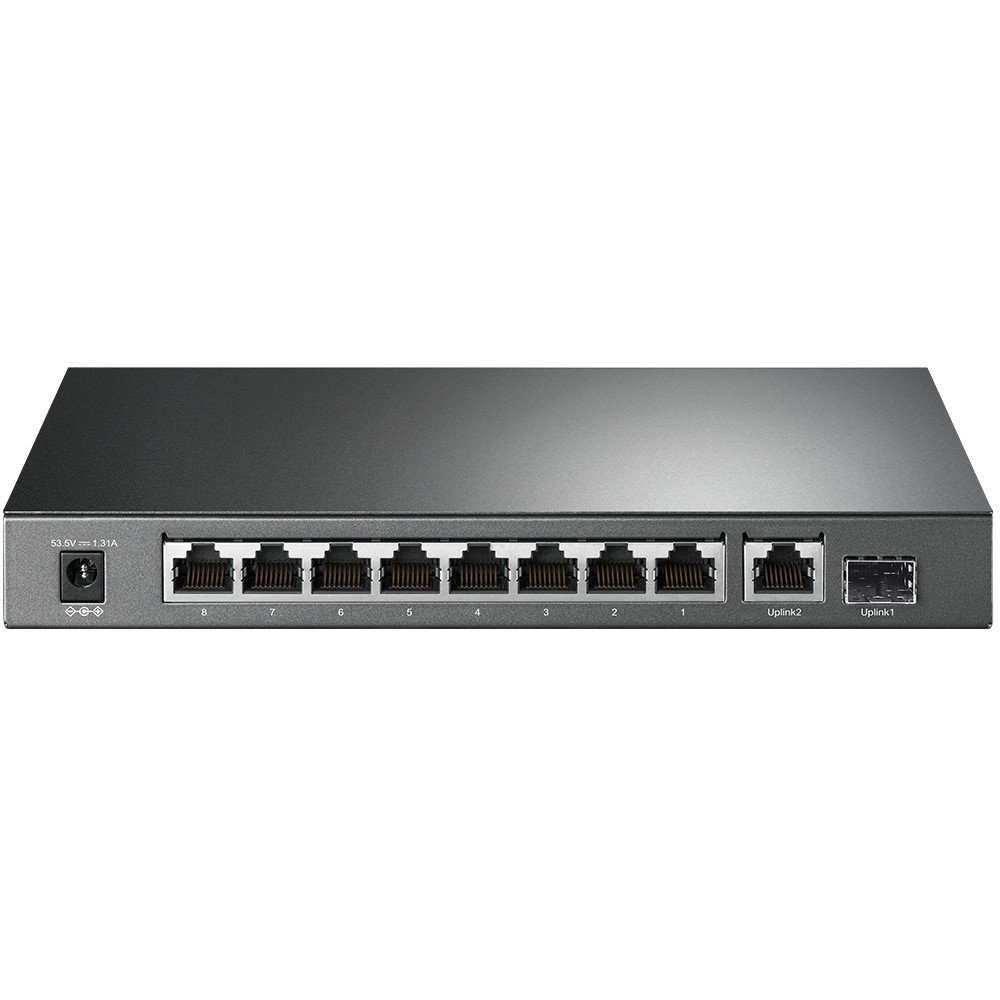

Interface	8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	Fanless
Physical Security Lock	Yes
Power Supply	External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate	14.88 Mpps
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	20 Gbps
Dimensions ( W x D x H )	209 × 126 × 26 mm
Max Power Consumption	7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation	24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES
Advanced Features	Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG1210P, Power Adapter, Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
